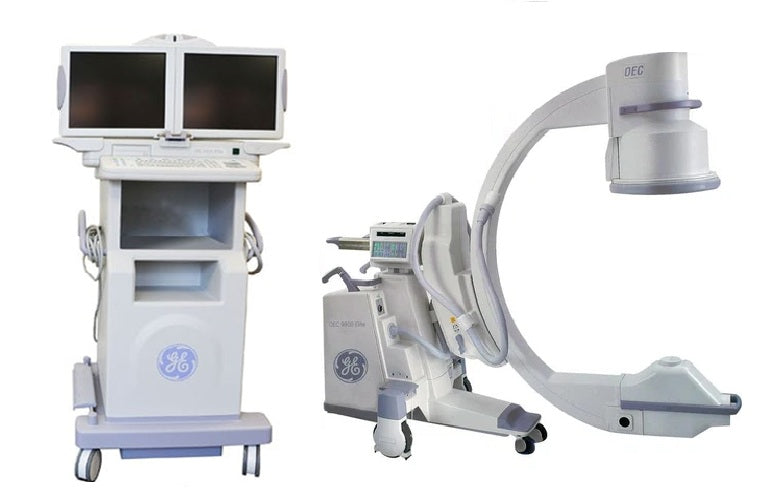

The GE OEC 9900 Elite ESP C-Arm is a mobile fluoroscopy imaging system designed to support a wide range of surgical and interventional procedures. Known for its image quality, maneuverability, and efficient workflow, this C-arm helps clinical teams capture detailed real-time images while maintaining flexibility in the operating room.
Its mobile design allows for precise positioning around the patient, making it suitable for applications such as orthopedic, vascular, pain-management, spine, cardiac, and general surgical procedures. The system is engineered to help clinicians view anatomy clearly, adjust imaging settings efficiently, and access the information needed during time-sensitive procedures.
Features & Specs
- Mobile c-arm provides excellent image equality and an easy-to-use interface.
- 1k x 1k high resolution imaging technology on a convenient, mobile system.
- Provides high quality images while maintaining low dosage.
- Ideal for any hospital or outpatient setting.
- Versatile unit designed to handle both simple and challenging imaging cases.
- C-arm features a deep arch, allowing for premium patient access for cardiovascular and pain management procedures.
- Quick and easy positioning of the C-arm with superior articulation capabilities.
- Simple user interface helps to reduce procedure time and improve efficiency.
- Unique SmartView pivot joint allows clinicians to achieve true lateral imaging, minimizing the need for repeated exposures.
- Flat panel monitors mounted on an articulating arm, allow viewing from any angle in the imaging suite.
- Dual control mainframe and left-to-right layout means easy access for fast operation.
- Dynamic Range Management (DRM) technology provides uncompromised image quality.
- Image for longer periods of time with unique x-ray tube and cooling system.
- Unique battery buffer technology allows for longer c-arm on-times.
- OEC 9900 system features 100 times more image computing power than previous C-arms in this series.
- Preset imaging profiles help to enhance features of interest.
- Remote service connectivity performs system diagnostics.
Generator:
- 60 kHz high frequency
- 15 kW full-wave
- Up to 120 kVp
- Up to 75 mA for radiographic film exposure
- Continuous high level fluoro up to 20 mA
- Pulsed fluoro mode
- Pulsed fluorography mode up to 40 mA
- Digital spot up to 75 mA
- Full power from outlet:
- 50 Hz or 60 Hz
- 120V-12A or 240V-10A
X-Ray Tube:
- Rotating anode X-ray tube
- Focal spots: 0.3 mm and 0.6 mm
- Anode heat capacity: 300,000 HU
- Anode cooling rate: 85,000 HU/min
- Housing heat capacity: 1,600,000 HU
- Standard housing cooling 15,000 HU/min
- Passive housing cooling system: 22,500 HU/min. (Standard on 12 inch (31 cm) I.I. systems
PreView Collimator:
- On-screen collimator position indication
- PreView iris collimator
- PreView Tungsten rotatable double leaf collimator
- Adjusts collimators without X-ray exposure
Fluoroscopy Mode:
- Focal spot: 0.3 mm
- kVp range: 40 – 120 kVp
- mA range: 0.2 – 10 mA normal mode
- mA range: 1.0 – 20 mA HLF. (high level fluoro)
- Auto and manual fluoro modes
- Continuous, one-shot or pulsed operation
- AutoTrak™ ABS varies mA, kVp, camera gain
Pulsed Fluoroscopy Mode:
- Focal spot: 0.3 mm
- kVp range: 40 – 120 kVp
- mA range: 0.2 – 10 mA
- Pulse rate: 1, 2, 4, or 8 pulses per second
- Pulse width: 25 or 50 milliseconds
- AutoTrak™ ABS, mA, kVp, camera gain
- Reduces X-ray dose to patient and operator
- High Level Pulsed Fluoroscopy Mode:
- Vp range: 40 – 120 kVp
- mA range: 1 – 40 mA
- Pulse width: 25 or 50 milliseconds
- Pulse rate: 1, 2, 4, or 8 pulses per second
- AutoTrak™ ABS, mA, kVp, and camera gain
Digital Spot Mode:
- kVp range: 40 – 120 kVp
- mA range: Up to 75 mA
- Automatic exposure termination and automatic image save
Video Camera:
- High resolution 1k x 1k CCD camera
- Full frame capture
- Motorized rotation
- On-screen orientation indicator. (real-time feedback without fluoro.)
- Left-right image reversal
- Top-bottom image reversal
Video Monitors:
- Dual 18” (46cm) display anti-glare, LCD flat panel monitors mounted on an articulating arm
- 22” horizontal travel
- 7° up/10° down
- Monitors viewable from all four sides of workstation
- Horizontal and vertical viewing angle 170°
- 700 CD/M2 maximum brightness
- Touch screen system control
- 1280 x 1024 high resolution monitors
- Ambient room-light compensation
- Integrated color monitor for display of VGA, DVI, DVI-D, S-VHS
C-Arm Dimensions:
- Height: 69.7 / 87.7 in. (1770 / 2228 mm.)
- Width: 33.5 in. (851 mm.)
- Length: 77.8 in. (1976 mm.)
- Weight: 610 lbs. (277 kg.)
